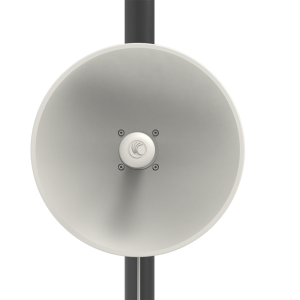

Cambium Networks Force 300-25L

Product Features

• High-Capacity Throughput: Powered by advanced 802.11ac Wave 2 technology to support wide channel bandwidth configurations up to 80 MHz, maximizing data transfer speeds.

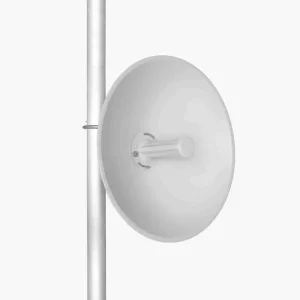

• Narrow Beamwidth Dish Antenna: Features a 25 dBi parabolic reflector dish that focuses the wireless signal into a tight beam, dramatically reducing the impact of background noise and surrounding radio interference.

• Configurable Operating Modes: Functions seamlessly as a long-range Subscriber Module (SM) within an ePMP point-to-multipoint network architecture or as a dedicated endpoint in a high-speed point-to-point (PTP) wireless link.

• Advanced QoS and Traffic Management: Provides sophisticated Quality of Service (QoS) protocols to prioritize critical real-time traffic such as voice over IP (VoIP), video streaming, and high-priority business data.

• Flexible Monitoring Options: Fully compatible with Cambium’s cnMaestro management framework for structured deployment control, real-time diagnostic reporting, and remote firmware configurations.

Product Specifications

• Wireless Technology: 802.11ac Wave 2 | Proprietary ePMP air interface protocol

• Frequency Spectrum: 4910 to 5970 MHz (Exact frequencies restricted by local regulatory domains)

• Maximum PHY Rate: Up to 400 Mbps configurations

• Antenna Gain: Integrated 25 dBi parabolic dish antenna

• Physical Interface: 1 x 10/100/1000 Mbps auto-sensing Gigabit Ethernet port

• Power Method: 30V Passive Power over Ethernet (PoE) | Max consumption of 12W

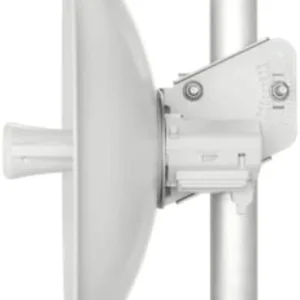

• Environmental Tolerance: IP55 weather-sealed enclosure built to survive harsh atmospheric conditions

• Physical Proportions: 470 mm diameter dish depth of 311 mm | Weight of 2.4 kg including the mounting hardware

• Wind Survival Speed: Rated for structural stability in wind speeds reaching up to 180 km/h

Benefits

• Extended Link Distances: The highly focused 25 dBi high-gain dish structure allows network operators to establish stable wireless links over many kilometers, reaching remote locations reliably.

• Excellent Noise Immunity: By utilizing a highly directional beam pattern, the module successfully filters out side-lobe interference common in congested wireless environments.

• Cost-Efficient Backhaul: Delivers an affordable alternative for establishing high-throughput building-to-building bridges or rural broadband extensions without deploying expensive fiber cables.

• Reliable Package Transmission: Employs advanced channel-sensing mechanics to ensure consistent, low-latency connectivity even under changing physical weather conditions.

Unboxing

Inside the commercial packaging, you will find:

• 1 x Cambium ePMP Force 300-25L Radio assembly

• 1 x 25 dBi Parabolic Reflector Dish Panel

• 1 x Heavy-duty pole mounting bracket with alignment adjustment bolts

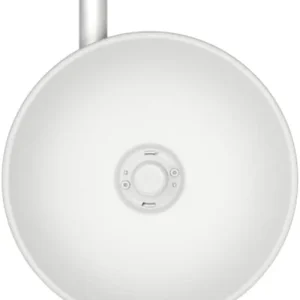

• 1 x Specialized feed-horn assembly with integrated radome shield

• 1 x 30V Passive Power over Ethernet (PoE) Injector unit

• 1 x Regional AC power input cable

• 1 x Installation quick-reference guide

Who the Product Is For

The Force 300-25L is designed for Wireless Internet Service Providers (WISPs), system integrators, and enterprise network engineers who need to deploy high-speed outdoor data links. It is the ideal solution for linking remote farm properties, connecting separate campus facilities, building dedicated industrial surveillance links, or provisioning rural broadband infrastructure where long distances and high interference must be managed.
