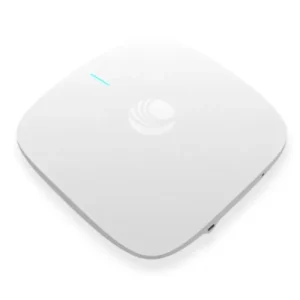

cnPilot e410 Enterprise Indoor Wi-Fi – Cambium

Product Features

• 802.11ac Wave 2 Technology: Utilizes dual-band concurrent MU-MIMO $2\times2$ streams to efficiently communicate with multiple client devices at the same time, maximizing overall data infrastructure layout.

• Controller-less Scaling: Supports autonomous operations without dedicated hardware controllers, enabling deployment configurations from single sites to massive distributed footprints.

• Monetized Guest Portals: Features built-in captive portal capabilities supporting social login, SMS authentication, and voucher generation for seamless visitor onboarding.

• Automatic RF Optimization: Continuously monitors ambient radio frequency environments to automatically adjust channel selection and power levels, mitigating indoor signal congestion.

• Unified Management Platform: Offers centralized network visibility, zero-touch deployment setup, and deep troubleshooting diagnostics through the cnMaestro cloud or on-premises management system.

Product Specifications

• Wi-Fi Standard: 802.11ac Wave 2 (Wi-Fi 5) | Dual-band 2.4 GHz and 5 GHz concurrent operation

• Max Throughput Rate: 2.4 GHz radio: 400 Mbps; 5 GHz radio: 867 Mbps (Combined total up to 1.267 Gbps)

• Physical Interface: 1 x IEEE Gigabit Ethernet (10/100/1000 Mbps) auto-sensing port

• Antenna Setup: Integrated internal omnidirectional dual-polarized antennas | 5.23 dBi (2.4 GHz) and 5.5 dBi (5 GHz)

• Power Delivery: Powered exclusively via standard 802.3af Power over Ethernet (PoE) | Max power consumption of 13W

• Physical Layout: Discreet low-profile design measuring 170 mm x 170 mm x 41 mm | Weight of 384 g

• Capacity Limits: Supports up to 256 concurrent client connections and up to 16 distinct SSIDs

Benefits

• High-Density Performance: Efficiently manages crowded indoor environments, ensuring smooth video conferencing, streaming, and enterprise application performance even when many devices connect at once.

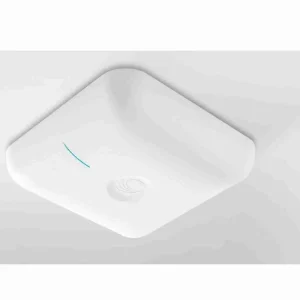

• Discreet Building Integration: The clean, sleek industrial housing blends seamlessly into ceiling tiles or wall mounts without disrupting corporate or hospitality interior aesthetics.

• Lower Operational Expenses: Controller-free management and complimentary cloud registration options significantly lower upfront capital requirements and ongoing licensing expenditures.

• Enhanced Network Resilience: If connection to the central controller platform is lost, local security policies, authentication pathways, and data traffic flows continue uninterrupted.

Unboxing

Inside the commercial packaging, you will find:

• 1 x Cambium cnPilot e410 Indoor Access Point unit

• 1 x Universal ceiling and solid wall mounting plate assembly

• 1 x Ceiling T-bar mounting clip set

• 1 x Pack of standard mounting screws and wall anchors

• 1 x Quick Start installation manual

Who the Product Is For

The cnPilot e410 is engineered for IT managers, network administrators, and retail owners looking for high-performance enterprise indoor wireless networking without premium licensing overheads. It is optimized for multi-tenant office spaces, primary and secondary school classrooms, boutique hotel properties, medical clinics, and mid-sized retail outlets requiring secure, reliable wireless connectivity.
