Ubiquiti LiteAP LAP-120 airMAX 5GHz 120° sector access point

Ubiquiti Networks LAP-120 Network Antenna MIMO Directional Antenna 16 dBi (LAP-120)

KSh15,000.00 Exc. VAT

LAP-120 is a Ultra-lightweight, 5 GHz access point with a versatile, ball-join mount.

Integrated 5 GHz antenna, 10+ km link range
450+ Mbps throughput
50+ client capacity
Dedicated spectral analysis radio

Same-day Nairobi
Order by 3pm
24–72h upcountry
Reliable couriers
Genuine + Warranty
Authorized brands
M-Pesa / Cash / Bank
Secure checkout

GTIN: 817882025539 SKU: 1030614 Category: Ubiquiti Wireless Brand: Ubiquiti

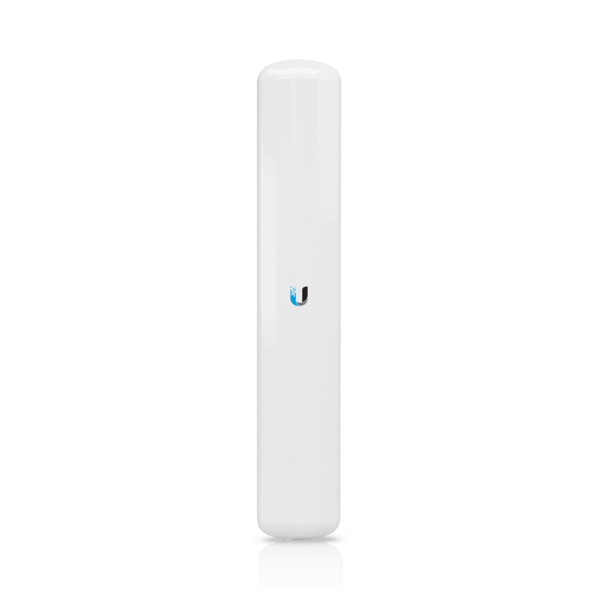

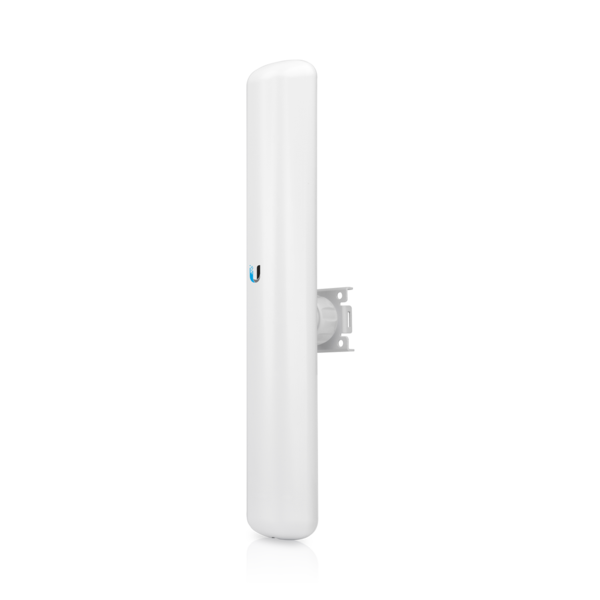

Ubiquiti Networks LAP-120 Network Antenna MIMO Directional Antenna 16 dBi

Ubiquiti Networks LAP-120 Network Antenna

The LAP-120 is a 5 GHz, 16 dBi, 120° airMAX® AC AP featuring an ultra-lightweight form factor. It was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging.

The ball-joint mount provides adjustment flexibility for versatile mounting options.

Minimal fasteners simplify installation. No tools are needed; only a single wrench is required for pole-mounting.

Ubiquiti Networks LAP-120 Network Antenna MIMO Directional Antenna 16 dBi

Powerful Wireless Features

Access Point PtMP airMAX Mixed Mode
airMAX ac Protocol Support
Long-Range Point-to-Point (PtP) Link Mode
Selectable Channel Width
- PtP: 10/20/30/40/50/60/80 MHz
- PtMP: 10/20/30/40 MHz
Automatic Channel Selection
Transmit Power Control: Automatic/Manual
Automatic Distance Selection (ACK Timing)
Strongest WPA2 Security

Usability Enhancements

airMagic® Channel Selection Tool
Redesigned User Interface
Dynamic Configuration Changes
Instant Input Validation
HTML5 Technology
Optimization for Mobile Devices
Detailed Device Statistics
Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView® Spectrum Analyzer

Additional Product Notes

High-Performance Sector AP
Up To 450+ Mbps Real TCP/IP Throughput
Lightweight, Low-Cost Solution

	LAP-120	LAP-GPS
Frequency	5 GHz	5 GHz
Throughput	450+ Mbps	450+ Mbps
Ports	(1) 10/100/1000 Ethernet Port	(1) 10/100/1000 Ethernet Port
Management Radio	–
GPS Sync	–

Specifications

Mechanical
Dimensions	452.3 x 78.7 x 54.4 mm (17.8 x 3.1 x 2.14″)
Weight	420 g (14.82 oz)
Wind survivability	200 km/h (125 mph)
Wind loading	77 N at 200 km/h (17.3 lbf at 125 mph)
Hardware
Networking interface	(1) GbE RJ45 port
Power method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply	24V, 0.5A gigabit PoE adapter (Included)
Supported voltage range	20—27V DC
Max. power consumption	8W
Antenna gain	16 dBi
ESD/EMP protection	Air/contact ± 24kV
Shock and vibrations	ETSI300-019-1.4
Ambient operating temperature	-40 to 70° C (-40 to 158° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Operating Frequency (MHz)
US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3	5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5725 MHz 5725 – 5850 MHz
Worldwide	5150 – 5875 MHz
