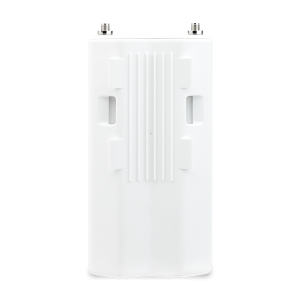

Ubiquiti R5AC-Lite Networks Rocket 5ac Lite 450 Mbit/s White
KSh20,000.00 Exc. VAT
Ubiquiti R5AC-Lite is a airMAX AC Technology for up to 500+ Mbps throughput.
- 5 GHz frequency band
- 500+ Mbps throughput
- 50+ client capacity
- Dedicated spectral analysis radio
- Same-day Nairobi
Order by 3pm - 24–72h upcountry
Reliable couriers - Genuine + Warranty
Authorized brands - M-Pesa / Cash / Bank
Secure checkout
R5AC-Lite – advanced Ubiquiti technology
The Ubiquiti R5AC-Lite guarantees high quality and stable transfer speed. The device belongs to the airMax Rocket AC series.
The device is characterised by a maximum connection speed of 450 Mbit/s. The device works in the 5150 – 5875 MHz band.
Parameters

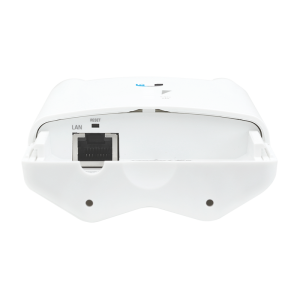

The device uses an Atheros MIPS 74KC 720 MHz processor. The device uses 128 MB internal memory and 16 MB flash drive memory. It is equipped with 1 Ethernet LAN (RJ-45) port. It supports QoS service and VLAN. It is CE, FCC and IC certified.
Use
The R5AC-Lite is compatible with airMax AC Sector Antenna and RocketDish AC Antenna devices to create efficient Point-to-Point and Point-to-Multi-Point links.
Construction
Its solid construction enables it to work in unfavourable weather conditions. It can be used at temperatures ranging from -40 to 80 degrees Celsius and relative humidity of up to 95%. It includes an installation set, a power supply unit and a short manual.
Key features
- works in the 5 GHz band
- 450 Mbit/s maximum transfer data speed
- airMax ac technology
- 162 x 84 x 37 mm size
- durable construction
- easy installation
Comparison
 |  |  | |
| R5AC-Lite | R5AC-PTP | R5AC-PTMP | |
| FREQUENCY | Full-Band 5 GHz | Mid-Band 5 GHz | Mid-Band 5 GHz |
| THROUGHPUT | 500+ Mbps (max. 80 MHz) | 500+ Mbps (max. 80 MHz) | 330+ Mbps (max. 40 MHz) |
| PORTS | (1) 10/100/1000 Ethernet | (1) 10/100/1000 Ethernet | (1) 10/100/1000 Ethernet |
| airMAX ac TECHNOLOGY |  | | |
| airPrism TECHNOLOGY | | | |
| PtP FUNCTIONALITY | | | * |
| PtMP FUNCTIONALITY | ** | * | |
| GIGABIT ETHERNET | | | |
| UBIQUITI POE | | | |
| OUTPUT POWER | 27 dBm | 27 dBm | 27 dBm |
*Requires firmware airOS v7.1.1 or higher **Requires firmware airOS v7.1 or higher
Manufacturer’s content
Read more in the manufacturer’s documentation
Specifications
Specifications
| Mechanical | |
|---|---|
| Dimensions | 162 x 84 x 37 mm (6.4 x 3.3 x 1.5″) |
| Weight | 250 g (8.8 oz) |
| Enclosure material | UV-stabilized plastic |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 20–27V DC |
| Max. power consumption | 8.5W |
| ESD/EMP protection | Air/contact ± 24kV |
| RF connectors | (2) RP-SMA (Waterproof) |
| LEDs | Power, LAN, (4) signal strength |
| Shock and vibration | ETSI300-019-1.4 |
| Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Management Radio (MHz) | |
| Worldwide | 5150 – 5875 MHz |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5725 MHz 5725 – 5850 MHz |
Construction Features
